C2090 Advanced Water Housing for Canon EOS R5 Mark II

From $ 1675

Product Overview

Our latest innovation! C2090 Water Housing for Canon EOS R5 mark II  features our ‘One and Done’ fast closure system! Load and close your housing in seconds!

Check it out in more detail in our latest blog    CLICK HERE

Our C2090 Advanced Water Housing is sold with the advanced backplate and camera tray for your camera model and the left side grip. You need to add a port system for your lens if you do not have an existing L-Port system.

The C2090 Advanced Water Housing for Canon EOS R5  mark II kit includes:

  • an extremely durable, impact resistant polyurethane resin water housing and backplate
  • a camera tray
  •  a 2-stage electronic front shutter button
  • our ultra-smooth AZC zoom control*
  • 1 year warranty (see T&C for details)
  • rated to 10m/33ft depth

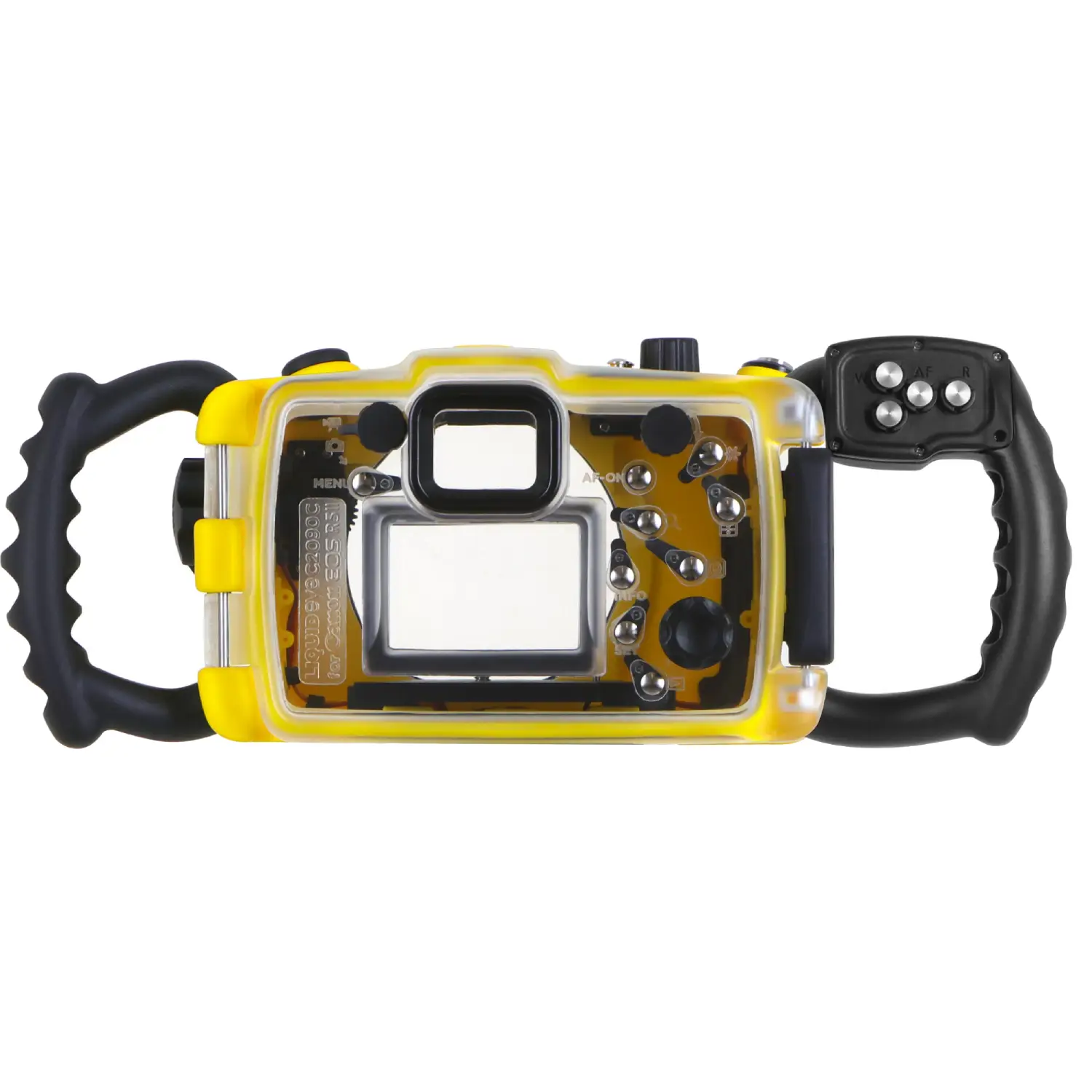

Note the right side handle grip shown on some of the product photos is optional and can be ordered separately.

Our Liquid Eye Model C2090 Advanced Water Housing for Canon EOS R5 mark II,  is also compatible with the EOS R5, R6, R6 MkII, R7 and R8. All that is needed to switch from one to another is to switch the camera tray, the back plate, the camera plug (as the two cameras use different plugs) and some small specific controls on the housing shell.

* Zoom lenses require a gear sleeve to engage the water housings zoom control. These are subject to additional cost.

Product Information

Features

  • Housing made from High-strength, Durable Polyurethane resin
  • Back Plate High-strength, Transparent Durable Polyurethane Resin
  • One Latch Closure System Reliable and fast.

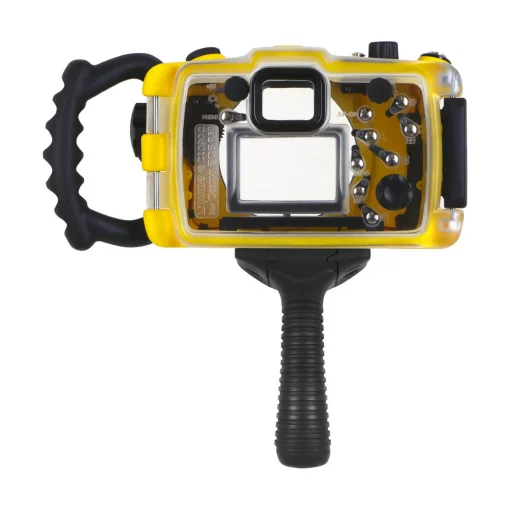

  • Left Side Hand Grip is Ergonomic and Strong
  • Right Side Hand Grip (optional)
  • Stainless Steel Controls are Ergonomic Marine Grade Stainless
  • Lens Zoom Control Ready
  • Camera Tray System is Interchangeable
  • Electronic 2-Stage Front Shutter Control Button
  • Front Dial Controls Shutter Speed in Manual Mode
  • M-Fn Button Customisable button
  • Movie Record Button Start/Stop movie recording
  • Flash Compatibility

Tech Specs

Size and Weight

  • Width: 230mm (9”)
  • Height: 140mm (5.5”)
  • Depth: 117mm (4.6”)
  • Weight: 1497g. (3.3lbs.) Housing with Back Plate, L-Side Grip.

Material

  • Polyurethane Body, Back Plate, Side Grip, Base Plate and Tray.
  • Stainless Steel and Durable Composite Controls.
  • High Strength Polyurethane Resin and Rubber Grip

Controls

On the housing

  • Electronic 2 Stage Front shutter button
  • AZC Zoom control
  • Flash connection port
  • GoPro Mount ready
  • Front dial control
  • M-Fn Button control

On the Back Plate

  • Star (AE-lock)
  • AF point selection button control
  • Still/video switch control
  • Quick Control button
  • Set control
  • Rear Quick Control Dial control
  • Menu button control
  • Playback button control
  • Info button control
  • Magnify/reduce button control
  • Soft Ergonomic Rubber Eye Cup

What’s in the Box of the C2090 Advanced Water Housing for Canon R5 mark II?

  • C2090 Water Housing with 2-Stage Electronic Front Shutter, AZC Zoom Control and Electronic Cabling.
  • Camera Base Plate and Tray.
  • Back Plate with Controls.
  • Tool kit – 3 Hex Keys (1.5mm, 2mm, 4mm), Spare Camera Plug and ILS Switch, 4 Spare 5×16 SS Hex screws (2 full thread, 2 half thread), Packet of Marine Grease.



Color Selection

Our Water Housing stock color is yellow. Yet, we offer a wide range of color to make your model at your convenience. Select the color of your choice down below.

Due to differences with CMYK pigments colors vs RGB video colors and screen monitor settings / calibration, the real colors of the housing may differ to how they appear here. To be only used as a guide to choose the color.

For technical reasons, black and white colors are not available
