C2060 Advanced Water Housing For Canon R10

From $ 1375

Product Overview

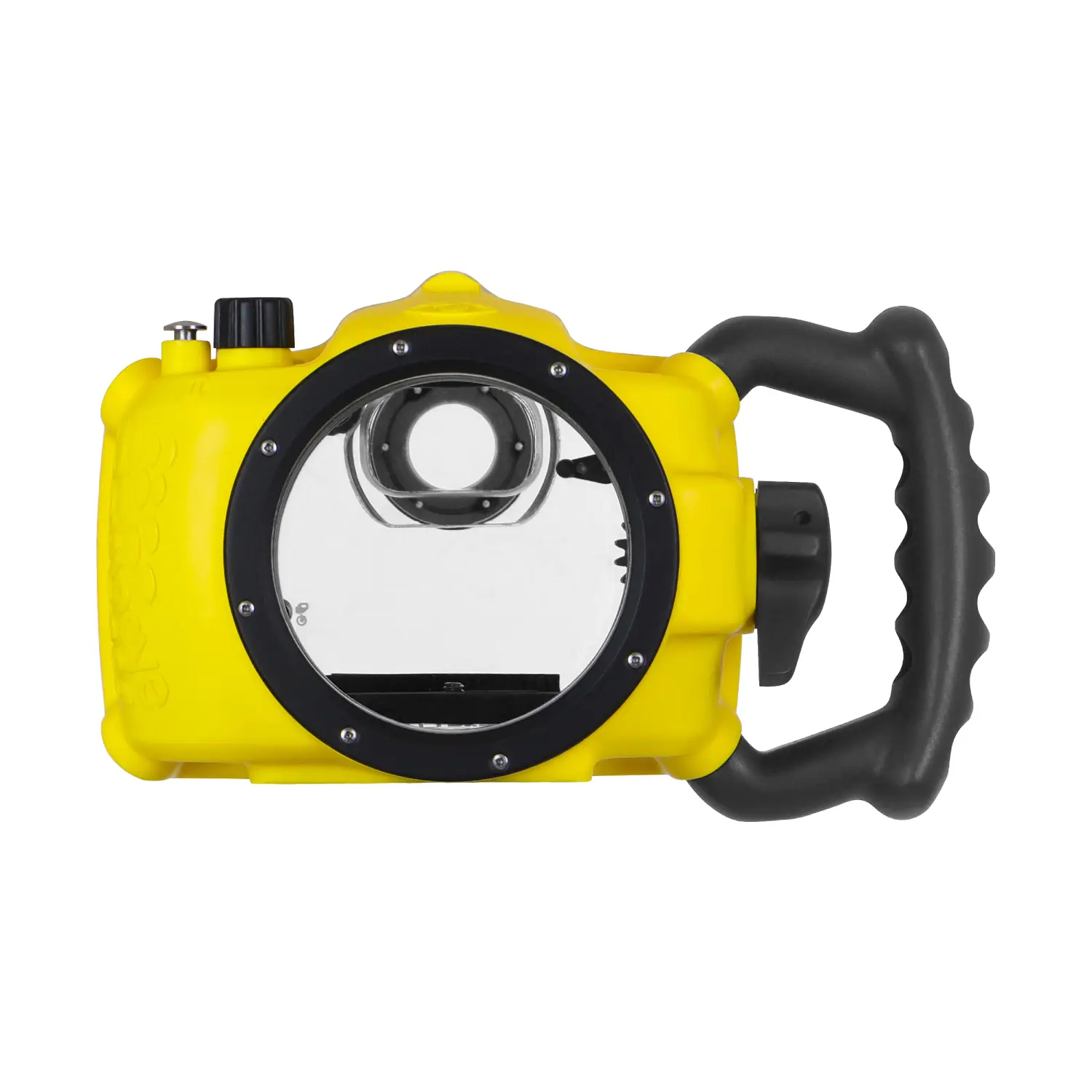

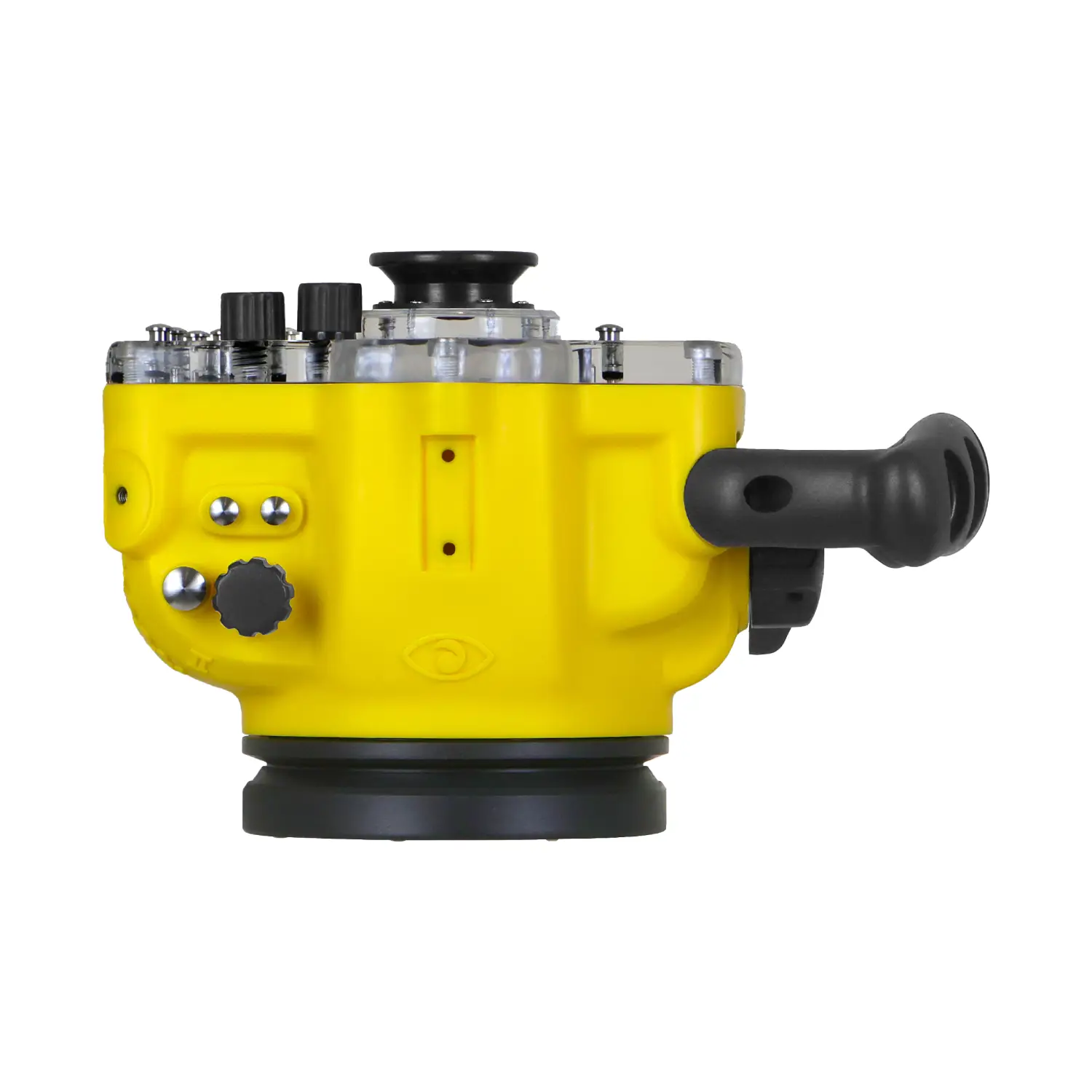

Our C2060 II Water Housing for Canon R10 and is sold with the standard backplate and the left side grip. You need to add a port system for your lens if you do not have an existing M-Port system.

The C2060 II kit includes

  • an extremely durable, impact resistant polyurethane resin water housing
  • an acrylic back plate with controls.
  • Rugged left side grip
  • our ultra-smooth zoom control*
  • 1 year warranty (see T&C for details)
  • rated to 10m/33ft depth

* Zoom lenses require a gear sleeve to engage the water housings zoom control. These are subject to additional cost.

Product Information


  • Housing made from High-strength, Durable Polyurethane Resin
  • Acrylic Back Plate (12mm / 1/2″ thick)
  • Port is Interchangeable M Mount Port System
  • Stainless Steel Controls are Ergonomic Marine Grade Stainless
  • Lens Zoom Control Ready
  • Camera Tray
  • Auxiliary Front Shutter Control Button
  • Front Dial
  • Movie Record

Tech Specs

Size and Weight

  • Width: 180mm (7.1”)
  • Height: 140mm (5.5”)
  • Depth: 97mm (3.8”)
  • Weight: 1390g (3.06lbs.) Housing with Back Plate, M-Port system.


  • Polyurethane Body, Ports, Side Grip, Base Plate and Tray.
  • Acrylic Back Plate.
  • Stainless Steel and Durable Composite Controls.
  • High Strength Polyurethane Resin and Rubber Grip


On the Housing

  • Front shutter button
  • Zoom control
  • Front Dial
  • Movie Record

On the Backplate

  • Menu
  • Mode Dial
  • Top Rear dial
  • AF-On
  • * Button
  • Info
  • Focus Point Selector Button
  • 4 Way D-Pad Button Controls
  • Q/Set Button
  • Playback

What’s in the Box of the Essential C2060 Water housing ?

  • C2060 II Water Housing with Front Shutter, Zoom Control and Electronic Cabling.
  • Front Dial, Movie Record.
  • Plain Back Plate
  • Left Side Grip
  • Tool kit – 3 Hex Keys (1.5mm, 2mm, 4mm), Spare Camera Plug and ILS Switch, 2 Spare 5×16 SS Hex screws, 2 spare 5x12mm SS Flat Head Machine Screws, Packet of Marine Grease.

Color Selection

Our Water Housing stock color is yellow. Yet, we offer a wide range of color to make your model at your convenience. Select the color of your choice down below.

Due to differences with CMYK pigments colors vs RGB video colors and screen monitor settings / calibration, the real colors of the housing may differ to how they appear here. To be only used as a guide to choose the color.

For technical reasons, black and white colors are not available
