Water Housing for Sony A7R IV

Shop here for Pricing Ask us a question

CHECK LENS/PORT CHART FOR THIS MODEL HERE

To purchase a Liquid Eye C2060 II Water Housing for Sony A7R IV camera, you will need to hit the “Shop Here” button up above.

It will redirect you to the order page. You will find several drop down menus there where you will be able to choose all the items according to your gear.

We designed this “order page” to bring you the best and easiest customer experience. Let us guide you through all the steps.

Still, if you have any question, do not hesitate to contact our team for assistance HERE

You will find a complete description of this product down below.

Out of stock

Categories: ,
Description

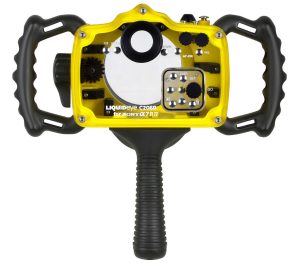

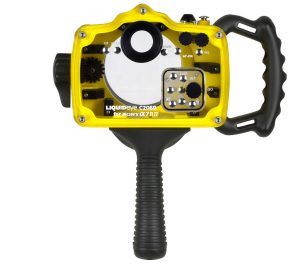

Water Housing for Sony A7R IV Product Overview

Our C2060 II Water Housing for Sony Alpha A7R IV is sold as a ready to use kit ; just add your camera, lens, and you’re ready to start creating images in and around the water.

The C2060 II kit includes

  • an extremely durable, impact resistant polyurethane resin water housing
  • an acrylic back plate with access to your DSLR’s essential controls
  • a pistol grip equipped with our proprietary dual-stage autofocus trigger which allows precise control of your lens focus
  • an interchangeable port (Our C2060 II Water Housing for Sony Alpha A7R IV uses our M Mount Port Series)
  • an auxiliary front shutter button and our ultra-smooth zoom control*

This is a complete water ready system; all you add is the camera and lens and you are equipped to go.
Our Liquid Eye Model C2060 II Water Housing for Sony Alpha A7R IV is compatible with many others different Sony camera bodies. All that is needed to switch from one to another is to switch the chocks, the back plate, the camera plug (if the two cameras use different plugs) and the Shutter Extender.

* Zoom lenses require a gear sleeve to engage the water housings zoom control. These are subject to additional cost.

Product Information

Features

  • Housing made from High-strength, Durable Polyurethane Resin
  • Acrylic Back Plate (12mm / 1/2″ thick)
  • Pistol Grip is Dual Stage AF/Shutter (allows for both focusing and firing using one button)
  • Port is Interchangeable M Mount Port System for the Sony (and other third party brand) Lens Series
  • Stainless Steel Controls are Ergonomic Marine Grade Stainless
  • Lens Zoom Control Ready
  • Positionning Chocks System is Interchangeable
  • Auxiliary Front Shutter Control Button
  • On/Off Switch

Tech Specs

Size and Weight

  • Width: 180mm (7.1”)
  • Height: 140mm (5.5”)
  • Depth: 97mm (3.8”)
  • Weight: 1390g (3.06lbs.) Housing with Back Plate, PG5 Pistol Grip and M-LP-65 Port.

Material

  • Polyurethane Body, Ports, Side Grip, Base Plate and Tray.
  • Acrylic Back Plate.
  • Stainless Steel and Durable Composite Controls.
  • High Strength Polyurethane Resin and Rubber Pistol Grip

Controls

On the housing

  • Front shutter button
  • Zoom control
  • On/Off Switch
  • C1 Custom Button
  • C2 Custom Button

On the back plate

  • Menu
  • AEL-Zoom In
  • Rec (Movie)
  • C3 Custom Button
  • Playback
  • C4 Custom Button (Trash)
  • Fn
  • 5 Multi Controler Pad (4 ways Plus Center) plus Wheel Dial
  • Back Dial Wheel
  • Soft Ergonomic Rubber Eye Cup



What’s in the Box of the Water housing for Sony Alpha A7R IV ?

  • C2060 II Water Housing with Front Shutter, Zoom Control and Electronic Cabling.
  • Back Plate with Controls.
  • PGXII Dual Stage AF Pistol Grip
  • Tool kit – 3 Hex Keys (1.5mm, 2mm, 4mm), Spare Camera Plug and ILS Switch, 2 Spare 5×16 SS Hex screws, 2 spare 5x12mm SS Flat Head Machine Screws, Packet of Marine Grease.

__________________________________________________________________________________________________________________________________________________________________________

Recommended Accessories   View all

Photographs are not to scale and do not represent the exact relative sizes of the respective products.
