Water Housing for Panasonic Lumix GH6 Product Overview
Our C2100 Water Housing for Panasonic Lumix GH6 is sold as a ready to use kit. Just add your camera, lens, and you’re ready to start creating images in and around the water.
The C2100 kit includes:
- an extremely durable, impact resistant polyurethane resin water housing,
- an acrylic back plate with access to your DSLR’s essential controls,
- a pistol grip equipped with our proprietary dual-stage autofocus trigger which allows precise control of your lens focus,
- an interchangeable port (our Water Housing for Panasonic Lumix GH6 uses our L Mount Port Series),
- a rugged left side hand grip, a camera tray, an auxiliary front shutter button (on the advanced version only)
- and our ultra-smooth zoom control*
This is a complete water ready system; all you add is the camera and lens and you are equipped to go.
Our Liquid Eye Model C2100 Water Housing for Panasonic Lumix GH6 is compatible with several others different camera bodies. All that is needed to switch from one to another is to switch the camera tray, the back plate (for Advanced Models only), the camera plug (if the two cameras use different plugs) and the Shutter Extender (for Advanced Models only).
* Zoom lenses require a gear sleeve to engage the water housings zoom control. These are subject to additional cost.
Product Information
Features
- Housing made from High-strength, Durable Polyurethane
- Pistol Grip is Dual Stage AF/Shutter (allows for both focusing and firing using one button)
- Port is Interchangeable LP Port System for the Canon Lens Series
- Left Side Hand Grip is Ergonomic and Strong
- Right Side Handle Grip (optional)
- Stainless Steel Controls are Ergonomic Marine Grade Stainless
- Lens Zoom Control Ready
- Camera Tray System is Interchangeable
- Electronic Front Shutter Control Button
Tech Specs
Size and Weight
- Width: 200mm (7.75”)
- Height: 180mm (7”)
- Depth: 110mm (4.25”)
- Weight: 1700g. (3.7lbs.) Housing with Back Plate, PG5 Pistol Grip, L-Side Grip and L-LP-65 Port
Materials
- High Strength Polyurethane Resin Body, Ports, Side Grip, Camera Tray and Base Plate
- Acrylic Back Plate
- Marine Grade Stainless Steel and Durable Composite Controls
- High Strength Polyurethane Resin and Rubber Pistol Grip
Depth Rating
- 10 meters (33 ft.)
Controls
On the housing
- Front 2 Stage Electronic Shutter Button (not included on the standard model)
- Zoom Control

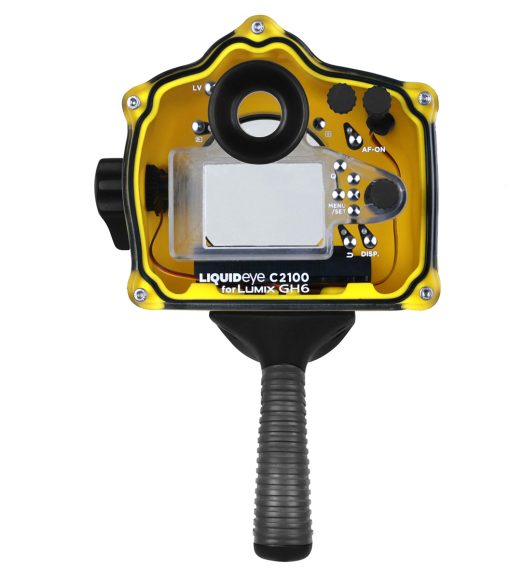

On the Advanced Back Plate
- Top Rear Multi Function Dial
- AF-ON button control
- Menu/Set Button Control
- 4 Way D-Pad Button Control
- Rear Dial
- ‘Back/Return’ Button Control
- Disp. Button Control
- Playback Button Control
- LV Button Control
- Soft Ergonomic Rubber Eye Cup
What’s in the Box of the Water Housing for Panasonic Lumix GH6 ?
- C2100 Water Housing with Front Shutter, Zoom Control and Electronic Cabling
- Camera Tray and Base Plate
- Acrylic Back Plate with Controls
- PGXIII Dual Stage AF Pistol Grip
- Left Side Hand Grip
- Tool kit – 3 Hex Keys (1.5mm, 2mm, 4mm), Spare ILS Switch, 2 Spare 5×16 SS Hex screws, 2 spare 5x12mm SS Flat Head Machine Screws, Packet of Marine Grease.
