Water Housing for Canon EOS R7
Shop here for Pricing Ask us a question
CHECK LENS/PORT CHART FOR THIS MODEL HERE
Our C2080 Water Housing for Canon EOS R7 is sold as a ready to use kit ; just add your camera, lens, and you’re ready to start creating images in and around the water.
The C2080 for Canon EOS R7 kit includes:
- an extremely durable, impact resistant polyurethane resin water housing,
- an acrylic back plate with access to your DSLR’s essential controls,
- a pistol grip equipped with our proprietary dual-stage autofocus trigger which allows precise control of your lens focus at the first stage, then shutter release with the second stage
- an interchangeable port (our Water Housing for Canon EOS R7 uses our L Mount Port Series),
- a camera tray, a 2 stage electronic front shutter button
- and our ultra-smooth AZC zoom control*

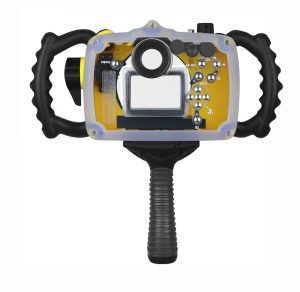

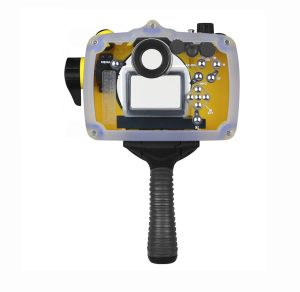

This is a complete water ready system; all you add is the camera and lens and you are equipped to go. Note the left and right side handle grip shown on some of the product photos is optional and can be ordered separately.
Our Liquid Eye Model C2080 Water Housing for Canon EOS R7 is also compatible with the EOS R6 and R5. All that is needed to switch from one to another is to switch the camera tray, the back plate, the camera plug (as the two cameras use different plugs) and some small specific controls on the housing shell.
* Zoom lenses require a gear sleeve to engage the water housings zoom control. These are subject to additional cost.
Out of stock
Description
Water Housing for Canon EOS R7 Product Information
Features
- Housing made from High-strength, Durable Polyurethane resin
- High Strength Polyurethane transparent resin Back Plate
- Pistol Grip is Dual Stage AF/Shutter (allows for both focusing and firing using one button)
- Port is Interchangeable L Mount Port System for the Canon Lens Series
- Left Side Hand Grip (optional)
- Right Side Hand Grip (optional)
- Stainless Steel Controls are Ergonomic Marine Grade Stainless
- AZC Zoom Control System
- Camera Tray System is Interchangeable
- Electronic 2 Stage Front Shutter Button
Tech Specs
Size and Weight
- Width: 234mm (9.21”)
- Height: 199,5mm (7.85”)
- Depth: 126,5mm (4.98”)
- Weight: 1800g. (3.95lbs.) Housing with Back Plate, PGXIII Pistol Grip, L-Side Grip and L-LP-65 Port.
Material
- Polyurethane Body, Back Plate, Ports, Side Grip, Base Plate and Tray.
- Stainless Steel and Durable Composite Controls.
- High Strength Polyurethane Resin and Rubber Pistol Grip
Controls
On the housing
- Electronic 2 stage front shutter button
- AZC Zoom control
- Flash connection port
- GoPro Mount ready
- Front dial control
- Movie shooting button control
- M-Fn button control
On the Back Plate
- Star (AE-lock)
- AF point selection button control
- AF-on button control
- Power on/off – Video switch dial
- Multi-Controller 4-Way plus SET/Q
- Rear Quick Control Dial
- Mode dial control
- Menu button control
- Playback button control
- Info button control
- Soft Ergonomic Rubber Eye Cup
What’s in the Box of the Water Housing for Canon EOS R7?
- C2080 Water Housing with Front Shutter, Zoom Control and Electronic Cabling.
- Camera Base Plate and Tray.
- Back Plate with Controls.
- PGXIII Dual Stage AF Pistol Grip.
- Tool kit – 3 Hex Keys (1.5mm, 2mm, 4mm), Spare Camera Plug and ILS Switch, 2 Spare 5×16 SS Hex screws, 2 spare 5x12mm SS Flat Head Machine Screws, Packet of Marine Grease.
__________________________________________________________________________________________________________________________________________________________________________
Recommended Accessories View all
Photographs are not to scale and do not represent the exact relative sizes of the respective products.
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories
__________________________________________________________________________________________________________________________________________________________________________
About the Canon EOS R7
The Canon EOS R7 is a compact and powerful camera that is perfect for use in the Liquid Eye C2080 water housing. With its compact size, high image quality, fast autofocus, and wide range of shooting options, it is an excellent choice for photographers of all levels who want to capture stunning images in or around the water.
One of the key features that makes the R7 such a great choice for use in a water housing is its compact size. At just 90.4mm in height, 132 mm in width and 91.7mm in depth, it is small enough to easily fit into the C2080 water housing without taking up too much space. This makes it ideal for photographers who need to travel with their gear or who simply want a camera that
