Water Housing for Canon EOS R5
Shop here for Pricing Ask us a question
CHECK LENS/PORT CHART FOR THIS MODEL HERE
Our C2080 Water Housing for Canon EOS R5 is sold as a ready to use kit ; just add your camera, lens, and you’re ready to start creating images in and around the water.
The C2080 for Canon EOS R5 kit includes:
- an extremely durable, impact resistant polyurethane resin water housing,
- an acrylic back plate with access to your DSLR’s essential controls,
- a pistol grip equipped with our proprietary dual-stage autofocus trigger which allows precise control of your lens focus at the first stage, then shutter release with the second stage
- an interchangeable port (our Water Housing for Canon EOS R5 uses our L Mount Port Series),
- a camera tray, a 2 stage electronic front shutter button
- and our ultra-smooth AZC zoom control*
This is a complete water ready system; all you add is the camera and lens and you are equipped to go. Note the left and right side handle grip shown on some of the product photos is optional and can be ordered separately.
Our Liquid Eye Model C2080 Water Housing for Canon EOS R5 is also compatible with the EOSR6. All that is needed to switch from one to another is to switch the camera tray, the back plate, the camera plug (as the two cameras use different plugs) and some small specific controls on the housing shell.
* Zoom lenses require a gear sleeve to engage the water housings zoom control. These are subject to additional cost.
Out of stock
Description
Water Housing for Canon EOS R5 Product Information
Features
- Housing made from High-strength, Durable Polyurethane resin
- High Strength Polyurethane transparent resin Back Plate
- Pistol Grip is Dual Stage AF/Shutter (allows for both focusing and firing using one button)
- Port is Interchangeable L Mount Port System for the Canon Lens Series
- Left Side Hand Grip (optional)
- Right Side Hand Grip (optional)
- Stainless Steel Controls are Ergonomic Marine Grade Stainless
- Lens Zoom Control Ready
- Camera Tray System is Interchangeable
- 2 Stage Electronic Front Shutter Control Button
Tech Specs
Size and Weight
- Width: 234mm (9.21”)
- Height: 199,5mm (7.85”)
- Depth: 126,5mm (4.98”)
- Weight: 1800g. (3.95lbs.) Housing with Back Plate, PGXIII Pistol Grip, L-Side Grip and L-LP-65 Port.
Material
- Polyurethane Body, Back Plate, Ports, Side Grip, Base Plate and Tray.
- Stainless Steel and Durable Composite Controls.
- High Strength Polyurethane Resin and Rubber Pistol Grip
Controls
On the housing
- 2 Stage Electronic Front shutter button
- AZC Zoom control
- Flash connection port
- GoPro Mount ready
- Front dial control
- M-Fn button control
- Video Record Button

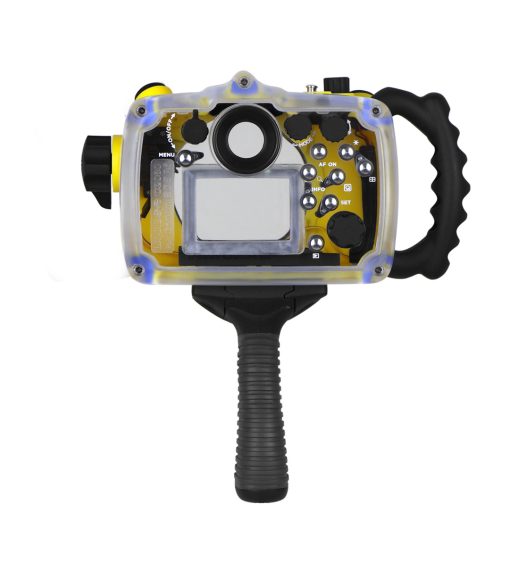

On the Back Plate
- Star (AE-lock)
- AF point selection button control
- Power/multifunction lock switch control
- Still/video switch control
- Movie shooting button control
- Multi-Controller 2-Way (R&L)
- Quick Control button
- Set control
- Rear Quick Control Dial control
- Menu button control
- Playback button control
- Info button control
- Magnify/reduce button control
- Soft Ergonomic Rubber Eye Cup
What’s in the Box of the Water Housing for Canon EOS R5?
- C2080 Water Housing with Front Shutter, Zoom Control and Electronic Cabling.
- Camera Base Plate and Tray.
- Back Plate with Controls.
- PGXIII Dual Stage AF Pistol Grip.
- Tool kit – 3 Hex Keys (1.5mm, 2mm, 4mm), Spare Camera Plug and ILS Switch, 2 Spare 5×16 SS Hex screws, 2 spare 5x12mm SS Flat Head Machine Screws, Packet of Marine Grease.
__________________________________________________________________________________________________________________________________________________________________________
Recommended Accessories View all
Photographs are not to scale and do not represent the exact relative sizes of the respective products.
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories
__________________________________________________________________________________________________________________________________________________________________________
About the Canon R5
The Canon EOS R5 is a high-performance full-frame mirrorless camera with a 45 megapixel CMOS sensor and DIGIC X image processor. It has a continuous shooting speed of up to 20 frames per second with full autofocus and auto exposure tracking, as well as a top ISO sensitivity of 51,200.
One of the standout features of the R5 is its 8-axis in-body image stabilization system, which helps to reduce camera shake and improve image quality when shooting handheld or in low light conditions. It also has Dual Pixel CMOS AF, which provides fast and accurate autofocus performance when shooting stills or video.
The R5 has a large electronic viewfinder with a high resolution of 5.76 million dots, as well as a fully articulating touchscreen LCD display. It is capable of recording 8K video at up to 30 frames per second, as well as 4K video at up to 120 frames per second for slow motion.
In terms of connectivity, the R5 has built-in Wi-Fi and Bluetooth for easy sharing and transferring of files, as well as a USB-C port for fast charging and data transfer. It is also compatible with the Canon LP-E6NH battery, which provides a long battery life of up to 330 shots per charge.
n addition to its impressive image and video capabilities, the Canon EOS R5 is also known for its compact size and lightweight design. It has a body that is smaller and lighter than many other full-frame cameras, making it an ideal choice for photographers who value portability.
This compact size makes the R5 particularly well-suited for use in a small and compact water housing like the Liquid Eye C2080. It can easily be carried around and used in a variety of shooting situations, whether on land or underwater. The camera’s small size also allows it to be easily stored and transported, making it a convenient choice for photographers who are always on the go.
Overall, the Canon EOS R5 is a versatile and powerful camera that offers a great combination of high-quality image and video capabilities, fast autofocus, and a compact and lightweight design. These features make it an ideal choice for use in the Liquid Eye C2080 water housing.
